Industry-Leading Aircraft Engine Oil Filtration
|
Airpart Supply is an authorized distributor and stockist for Champion Aerospace Oil Filters, serving European customers with premium aircraft engine oil filtration solutions for general aviation, commercial, and military applications. Champion Aerospace has been recognized as the industry leader in spin-on oil filters for reciprocating aircraft engines since introducing their first oil filter in 1974. Tests demonstrate that Champion High Performance Oil Filters protect your engine up to 30% more than competitive filters. In fact, in most cases competitive filters do not meet the minimum SAE ARP1400B standard for filtration efficiency that Champion consistently exceeds. In October 2002, Champion introduced improved filters (CH48103-1, CH48104-1, CH48108-1, CH48109-1, CH48110-1, CH48111-1, and CH48114-1) that overcame filtration limitations of previous designs and provided more pressure-resistant products. Champion's current product line represents the only filters on the market that meet SAE ARP1400B requirements in full, establishing the gold standard for piston aircraft oil filtration. As a subsidiary of TransDigm Group, Champion Aerospace is a leading global designer, producer, and supplier of aircraft engine parts and airframe power solutions for use on nearly all commercial, piston, and military aircraft in service today. Their comprehensive range includes spark plugs, rebuilt magnetos, new magnetos, and ignition harnesses. |
Superior Engine Protection
Tests show that Champion High Performance Oil Filters protect your engine up to 30% more than competitive filters. In fact, in most cases competitive filters don't even meet the minimum SAE ARP1400B standard for filtration efficiency.
Champion brand spin-on oil filters and element filters incorporate semi-depth filter media that combines the advantages of both surface and depth-type filtration. This advanced design delivers high filtering efficiency, controlled porosity for uniform flow, water resistance, and superior resistance to impulse and flow fatigue. The result is comprehensive protection for Lycoming engines and Continental engines throughout their service life.
Champion Aerospace's full-pleat, resin-impregnated micronic filter media traps all harmful particles, including metallic chips resulting from abnormal engine wear. Because oil flows through many layers of locked-in fibers, there is no migration of fiber material to clog engine oil passages or affect bearing surfaces. According to industry-approved tests, Champion oil filters trap and hold more dirt and harmful particles during normal operating time than any other similar filter.
SAE ARP1400B Compliance & Industry Standards
The Gold Standard for Aircraft Oil Filtration
The Society of Automotive Engineers (SAE) Aerospace Recommended Practice ARP1400B establishes requirements for lubricating oil filters for general aviation reciprocating engine applications with lubricating oil systems normally operating in a pressure range of 345 to 689 kPa (50 to 100 psig). This specification defines uniform parameters for the design, manufacture, and testing of filters for general aviation lubricating oil systems for aircraft-type piston engines.
Champion oil filters meet all SAE ARP1400B Oil Filtration standards whereas the competition does not. This means Champion filters clean oil better with higher filtration efficiency and maintain a higher burst pressure of 500 PSI, providing superior structural integrity and safety margins for aircraft engine operation.
Burst Pressure Performance
Champion oil filters achieve and maintain the SAE ARP1400B burst pressure requirement of 500 PSI for extended periods without signs of leakage or deformation. This superior structural integrity ensures reliable performance under the most demanding operating conditions, providing peace of mind for aircraft operators throughout Europe.
Filtration Efficiency Testing
Multi-pass testing in accordance with SAE ARP1400B standards confirms that Champion filters deliver exceptional filtration efficiency throughout their service life. This rigorous testing methodology evaluates the filter's ability to remove contaminants across multiple passes, ensuring consistent engine protection from installation through the next oil change interval.
Advanced Design Features
Improved Spring Design
Champion replaced the old leaf spring design with an improved coil spring configuration, providing more consistent valve operation and enhanced reliability throughout the filter's service life.
Thicker-Walled Can Construction
Increased wall thickness provides improved structural integrity compared to competitive filters. Champion's tough 8-gauge steel case is designed to meet or exceed engine manufacturer specifications, with increased lid thickness by approximately 35%, resulting in higher burst and impulse testing performance.
Stronger Center Tube
The redesigned center tube provides added strength with collapse pressures more than double competitive designs. This superior structural integrity ensures the filter maintains its integrity under extreme pressure conditions.
Enhanced Inlet Design
Champion changed from a four-hole design to an eight-hole configuration, providing approximately 30% greater inlet flow area. This improvement reduces pressure drop across the filter and ensures optimal oil flow to critical engine components.
Improved Baseplate Thread
Champion replaced cut threads with improved rolled threads, enhancing strength and durability without affecting tolerances on thread dimensions. This ensures reliable installation and removal throughout multiple service cycles.
Bypass Valve Technology
Champion filters incorporate bypass valves meeting TCM specifications, ensuring oil flow to the engine even if the filter becomes restricted. Internal bypass valves are included in models CH48108-1 and CH48109-1, which can be used on any TCM engine equipped with or without a bypass valve in the oil filter adapter.
Compact Design
The can height of Champion filters is approximately 1/2 inch shorter than competitive filters, with no impact to the filter media's performance. This provides an easier installation process in tight engine compartments while maintaining full filtration capacity.
Industry-Standard Gasket
Champion's silicone-impregnated gaskets provide a superior seal between the engine and filter that ensures proper torque during installation and easy removal during oil changes. These gaskets never seize to the engine, unlike inferior gaskets used by competitive manufacturers.
Installation Features
A 1-inch hex wrench pad is spot-welded to the filter case, allowing for controlled installation torque and easy removal with standard tools. Safety-wire tabs are conveniently located on the hex nut for easy access, ensuring secure installation in accordance with aviation hardware standards.
Comprehensive Product Range
Champion offers two types of oil filter cartridge to cover all existing aircraft piston engine lube oil system applications:
Replacement Filter Elements
Replacement elements service engine-mounted or line-installed filter systems incorporating a permanent housing assembly. All sizes of replacement elements are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons, ensuring safe delivery to European destinations.

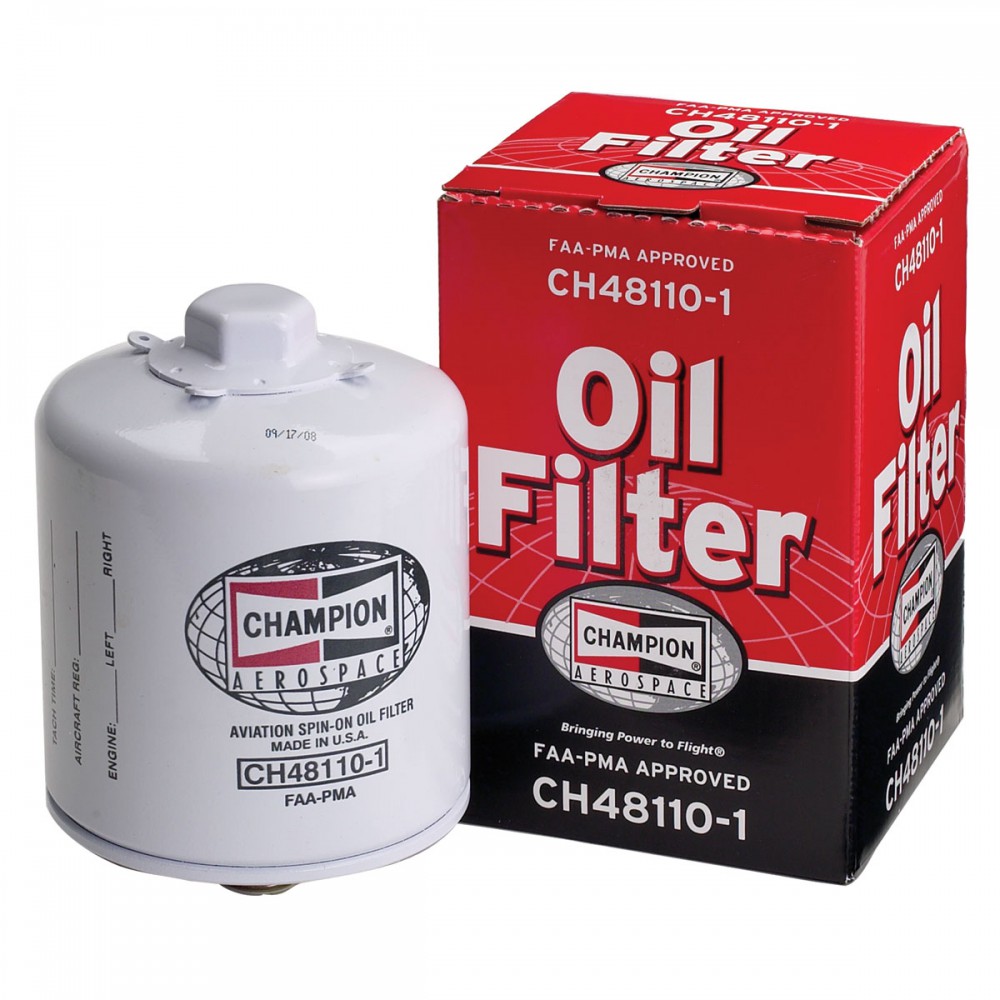

Spin-On Oil Filters
Modern spin-on oil filters contain the element, incorporating the anti-drain back valve mechanism (and internal bypass valve in models CH48108-1 and CH48109-1), sealed in a disposable housing. All sizes of spin-on filters are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons.
Interchangeable Heights
Champion oil filters feature interchangeable heights for custom installations, allowing operators to select the optimal filter size for their specific aircraft installation requirements. Shorter filters provide easier access in tight engine compartments, while taller filters maximize filtration capacity for extended oil change intervals.
Wide Aircraft Compatibility
Champion oil filters are FAA-PMA approved for use on Cessna, Piper, Beechcraft, Cirrus, Mooney, Diamond, Commander, and numerous other general aviation aircraft equipped with Lycoming or Continental engines. Aircraft engines not listed but equipped with oil filters at overhaul may accept Champion filters.
Continental (TCM) Engine Applications: Champion filters CH48108-1 and CH48109-1 are designed for Continental engines. Aircraft requiring service bulletins SEB-93-1 or MEB 93-1 require Champion Oil Filter CH48108-1. The CH48109-1 may also be used if clearance permits installation. Textron Lycoming supplies converter kits for engine installations requiring adaptation.
Lycoming Engine Applications: Champion filters CH48103-1, CH48104-1, CH48110-1, and CH48111-1 serve Lycoming engine applications across the general aviation fleet. These filters provide comprehensive protection for Lycoming's extensive range of four-cylinder and six-cylinder engines used in training, personal transportation, and business aircraft.
Product Specifications & Ordering Information
For pricing and availability, click the relevant Champion Oil Filter part number in the table below:
| Champion Part No. | A Height |
B Gasket |
C Hex |
D Diameter |
Thread (SAE) |
Dry Weight Lbs./Kg. |
|---|---|---|---|---|---|---|
| CH48103-1 | 4.48" (11.4 cm) | 0.43" (1.09 cm) | 1.00" Hex (2.54 cm) | 3.71" (9.4 cm) | 13/16-16-UNS-2B | 1.32 lbs. (0.59 kg) |
| CH48104-1 | 5.73" (14.6 cm) | 0.43" (1.09 cm) | 1.00" Hex (2.54 cm) | 3.71" (9.4 cm) | 13/16-16-UNS-2B | 1.41 lbs. (0.64 kg) |
| CH48108-1 | 4.48" (11.4 cm) | 0.43" (1.09 cm) | 1.00" Hex (2.54 cm) | 3.71" (9.4 cm) | 3/4-16-UNF-2B | 1.40 lbs. (0.64 kg) |
| CH48109-1 | 5.73" (14.6 cm) | 0.43" (1.09 cm) | 1.00" Hex (2.54 cm) | 3.71" (9.4 cm) | 3/4-16-UNF-2B | 1.51 lbs. (0.68 kg) |
| CH48110-1 | 4.48" (11.4 cm) | 0.43" (1.09 cm) | 1.00" Hex (2.54 cm) | 3.71" (9.4 cm) | 3/4-16-UNF-2A | 1.38 lbs. (0.63 kg) |
| CH48111-1 | 5.73" (14.6 cm) | 0.43" (1.09 cm) | 1.00" Hex (2.54 cm) | 3.71" (9.4 cm) | 3/4-16-UNF-2A | 1.47 lbs. (0.67 kg) |
European Distribution Advantages
Dublin Warehouse Stock
Airpart Supply maintains inventory of popular Champion oil filter part numbers at our Dublin, Ireland warehouse, ensuring rapid availability for European customers. Our strategic EU location provides faster delivery times compared to ordering from UK or US suppliers.
Simplified VAT Handling
As an EU-based distributor, we provide transparent VAT-inclusive pricing and streamlined tax handling for European customers. Eliminate unexpected import VAT charges and customs handling fees associated with UK or US orders.
EASA Compliance Documentation
Our technical team provides EASA-compliant documentation and certification support for Champion oil filters installed on European-registered aircraft. We understand European aviation regulations and assist with airworthiness requirements and conformity documentation.
European Business Hours Support
Receive technical assistance and customer service during EU business hours, eliminating time zone challenges when ordering critical engine maintenance supplies. Our Dublin-based team understands European aviation operations and provides timely expertise.
Complete Engine Maintenance Solutions
Airpart Supply offers a comprehensive range of Champion Aerospace products and complementary engine parts to support your aircraft maintenance requirements:
Champion Ignition Systems
Champion Rebuilt Slick Magnetos - We are the exclusive European distributor for Champion rebuilt magnetos, providing expertly reconditioned ignition systems with full warranty coverage.
Champion New Magnetos - Factory-new Slick magnetos for Lycoming and Continental engines.
Champion Spark Plugs - Complete range of aviation spark plugs including massive electrode and fine wire designs.
Champion Ignition Harnesses - High-quality ignition leads for reliable spark delivery.
Alternative Ignition Components
Tempest Spark Plugs - Alternative spark plug options with massive electrode technology.
Tempest Oil Filters - Alternative filtration solutions for comparison.
Engine Lubrication Products
Aircraft Oils & Greases - Complete range of aviation lubricants including AeroShell, Mobil, and Phillips 66 products.
Premium synthetic and mineral-based engine oils formulated for optimal performance with modern oil filtration systems.
Starting & Charging Systems
Sky-Tec Starter Motors - High-torque lightweight starters for improved starting reliability.
Plane Power Alternators - High-output alternators for enhanced electrical system capacity.
Concorde Batteries and Gill Batteries - Premium aircraft batteries for reliable starting power.
Fuel System Components
Weldon Fuel Pumps - FAA-approved aircraft fuel pumps for general aviation applications.
Avstar Fuel Systems - Fuel injection systems and carburetors.
Precision Airmotive - Advanced fuel system components.
Vibration Isolation
Barry Engine Mounts - FAA/PMA-approved engine mounts providing superior vibration isolation for Cessna, Piper, Beechcraft, Mooney, and Cirrus aircraft.
Additional Resources & Technical Information
Champion Aerospace Product Catalog
Click here for the Champion Aerospace Catalogue (this will open in a new window to allow you to use the search function on our website). The comprehensive catalog includes detailed specifications, application information, and installation guidelines for the complete Champion product line.
Manufacturer Information
More information about Champion Oil Filters can be found at the Champion Aerospace website: https://www.championaerospace.com/products/oil-filters
