FLARM Collision Avoidance System — Factory Authorised EU Dealer
PowerFLARM Devices, Licences & Accessories — Dublin Stock — EU Delivery
Airpart Supply Ireland Ltd are a Factory Authorised Dealer for FLARM Technology Ltd
What is FLARM?
FLARM is the collision avoidance system and traffic awareness technology used by General Aviation and UAVs. Aircraft with a FLARM system issue visual and aural warnings when on a collision course with another aircraft.
FLARM uses GPS and digital radio broadcasts to communicate with other aircraft. Many FLARM devices also incorporate an ADS‑B and transponder receiver. This enables aircraft that are not yet equipped with FLARM to be detected as well.
FLARM is recommended by many aviation authorities and organizations. Over 40,000 manned aircraft, or 50% of General Aviation in Europe, already have a FLARM-system installed.
READ MORE ABOUT POWERFLARM AND POWERFLARM DEVICES HERE
|
|
|
|
For pricing and availability click the relevant part number and options below. Units and options must be ordered at the same time, on the same PO for quoted pricing to remain.
PowerFLARM Devices

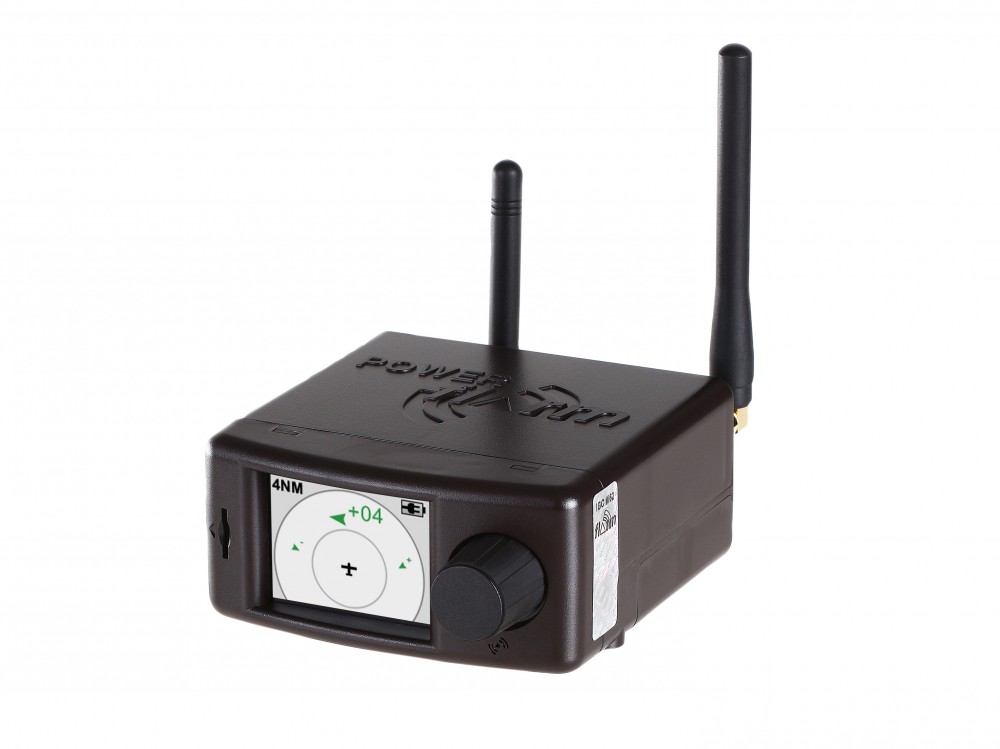

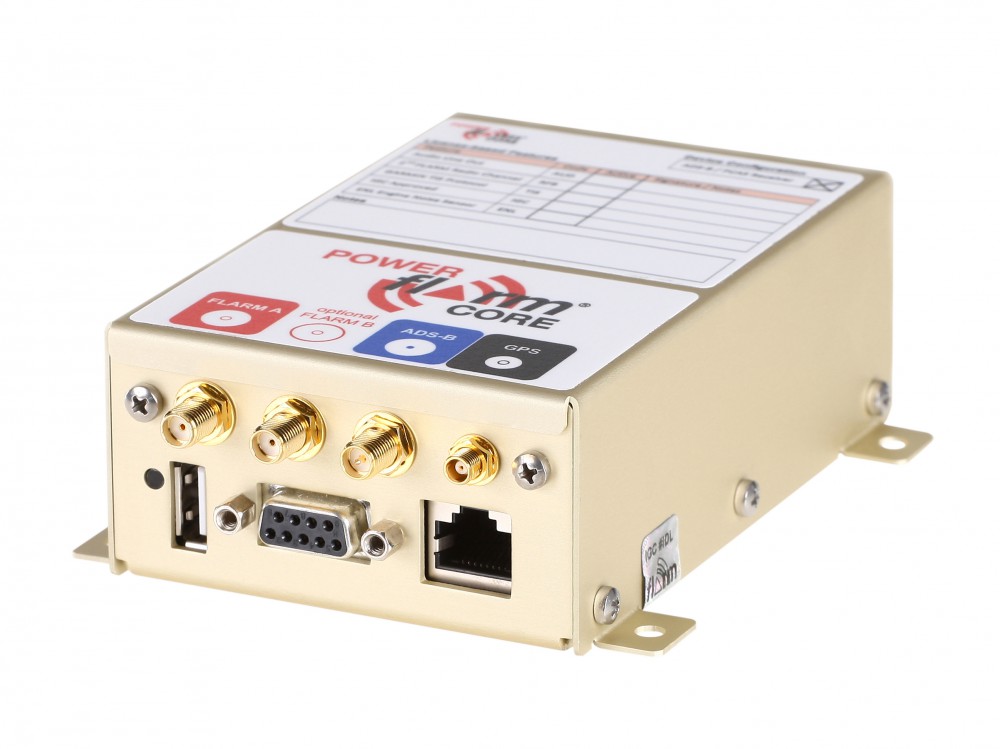

| PowerFLARM Devices | CORE PURE | CORE ADS-B | PORTABLE ADS-B | Notes |
| ● Included ○ Optional | ||||
| Part number, E-version | FLAPFD11E | FLAPFC11E | FLAPFP24E | The E-version works in Europe, Africa and New Zealand |
| Part number, A-version | FLAPFD11A | FLAPFC11A | FLAPFP24A | The A-version works in North and South America, Australia and Israel |
| Integrated display | ● | |||
| Built-in GPS Antenna | ● | |||
| Second FLARM Receiving Antenna | ○ | ○ | ○ | For option: Core Pure, Core ADS-B & Portable ADS-B devices are supplied with an internal antenna - Internal PN: ANTCIFLAEU (E-Version) or ANTCIFLAUS (A-Version). It is recommended for the Core Pure and Core ADS-B units that an external antenna is fitted PN: ANTCEFLA. It is possible to install an external antenna for the Portable ADS-B but this would affect its portability. Core Pure and Core ADS-B devices require an activation license for the additional antenna PN: LICRFB. License included for Portable ADS-B device. |
| Option to run on batteries (6 AA; not included) | ● | |||
| SSR 1090 MHz Receiver (Mode A/C/S) | ● | ● | ||
| ADS-B 1090 MHz Receiver | ● | ● | ||
| USB port for data readout and updates | ● | ● | ||
| microSD Card slot for data readout and updates | ● | |||
| Data port #1, 8P8C/RJ45 | ● | ● | ● | |
| Data port #2, D-sub DE-9 | ● | ● | ||
| 5V 500mA output for ext. devices (on USB port) | ● | ● | ||
| External Audio Output | ● | |||
| IGC Flight Recorder Approval | ● | ● | ○ | Up to and including Diamonds |
| Engine Noise Level (ENL) Recording | ○ | ○ | ○ | Option PN: LICENL. This option requires OGC Flight Recorder Approval. Portable ADS-B device requires purchase of PN: LICIGC in addition to PN: LICENL |
| Obstacle Database with Warnings | ○ | ○ | ○ | Option available for selected regions only - see part notes under ‘Licenses & MCA Section’ below. Obstacle Database PN: OBSDBASE |
| EASA Minor Change Approval (MCA) | ○ | ○ | ○ | Option applicability as follows: Gliders use PN: MCAELA2G, Motor Gliders use PN: MCAELA2MG, Powered Airplanes use PN: MCAELA2PA - Please check applicability/approval availability prior to ordering |
Licences & MCA
| Licence | Part number | Notes |
| Activate Second FLARM Receiving Antenna | LICRFB | Licence only. Core Pure and Core ADS-B devices require this activation licence for the additional antenna. Licence included for Portable ADS-B device. |
| IGC Flight Recorder Approval | LICIGC | Up to and including Diamonds |
| Engine Noise Level (ENL) Recording | LICENL | This option requires OGC Flight Recorder Approval. Portable ADS-B device requires purchase of PN: LICIGC in addition to PN: LICENL |
| Obstacle Database | OBSDBASE | Obstacle Databases available as of Feb 2020 are as follows: Austria/Slovenia, France, Germany, Italian Alps East, Italian Alps West, Switzerland, UK & Ireland and European Alps - Please advise which is required in the order notes at the time of order or contact us for more information |
| EASA Minor Change Approval (MCA) – Gliders | MCAELA2G | Please check applicability/approval availability prior to ordering |
| EASA Minor Change Approval (MCA) – Motor gliders | MCAELA2MG | Please check applicability/approval availability prior to ordering |
| EASA Minor Change Approval (MCA) – Powered airplanes | MCAELA2PA | Please check applicability/approval availability prior to ordering |
Additional Products & Services
Accessories are included with the PowerFLARM shipment and do not have to be ordered separately. The exceptions are an additional internal FLARM antenna which is needed together with the LICRFB licence and external antennas.
| Part | Part number |
| CORE, internal antennas | |
| GPS Antenna | ANTCIGPS |
| FLARM Antenna E-version | ANTCIFLAEU |
| FLARM Antenna A-version | ANTCIFLAUS |
| ADS-B Antenna E-version | ANTCIADSBEU |
| ADS-B Antenna A-version | ANTCIADSBUS |
| CORE, external antennas | |

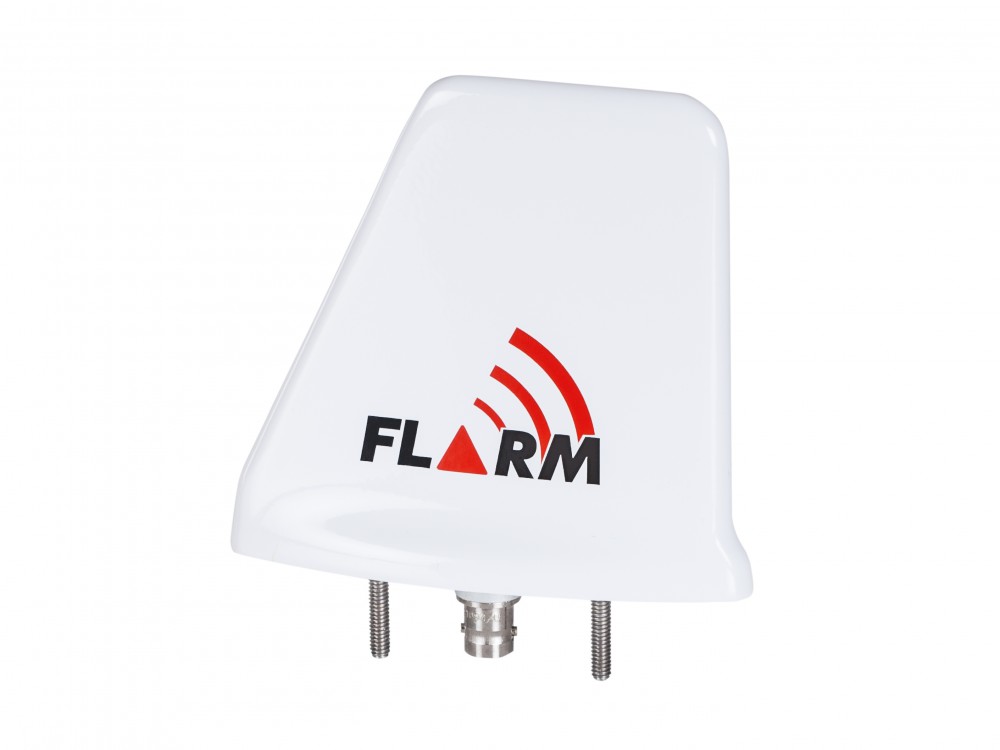

| FLARM Antenna AV-75, CORE, External | ANTCEFLA |
| PORTABLE, internal antennas | |
| FLARM Antenna E-version & A-version Port B | ANTPFLASMA |
| FLARM Antenna A-version Port A | ANTPFLARPSMA |
| ADS-B Antenna | ANTPADSB |
| Accessories | |
| PowerFLARM Core D-Sub DE-9 display data connector | ACCDSUBDE9 |
| PowerFLARM Core USB panel mount data cable | ACCUSBEXT |
| PowerFLARM Portable Power supply | ACPPWR |
Why Source FLARM from Airpart Supply Ireland?
Factory Authorised EU DealerAirpart Supply Ireland Ltd is a factory authorised dealer for FLARM Technology Ltd, supplying genuine PowerFLARM devices, licences and accessories to EU operators from our Dublin warehouse. |
Dublin Stock & EU DeliveryOrders dispatched from our Dublin, Ireland facility avoid post-Brexit customs complications for EU-based operators. Free express shipping is available on qualifying orders to selected EU countries. |
EASA & EU VATWe support EASA-regulated operators with appropriate documentation. EU business customers benefit from straightforward VAT handling when purchasing from Airpart Supply Ireland Ltd. |
Request a Quote for FLARM Devices & Accessories
Contact our Dublin team for stock availability, pricing and ordering assistance for PowerFLARM devices, licences and accessories. EU operators benefit from our Dublin stock holding and straightforward EU delivery.
[email protected] | +353 1 699 4406
Request a Quote
